Digital Remote Control for JLid™ compatible products

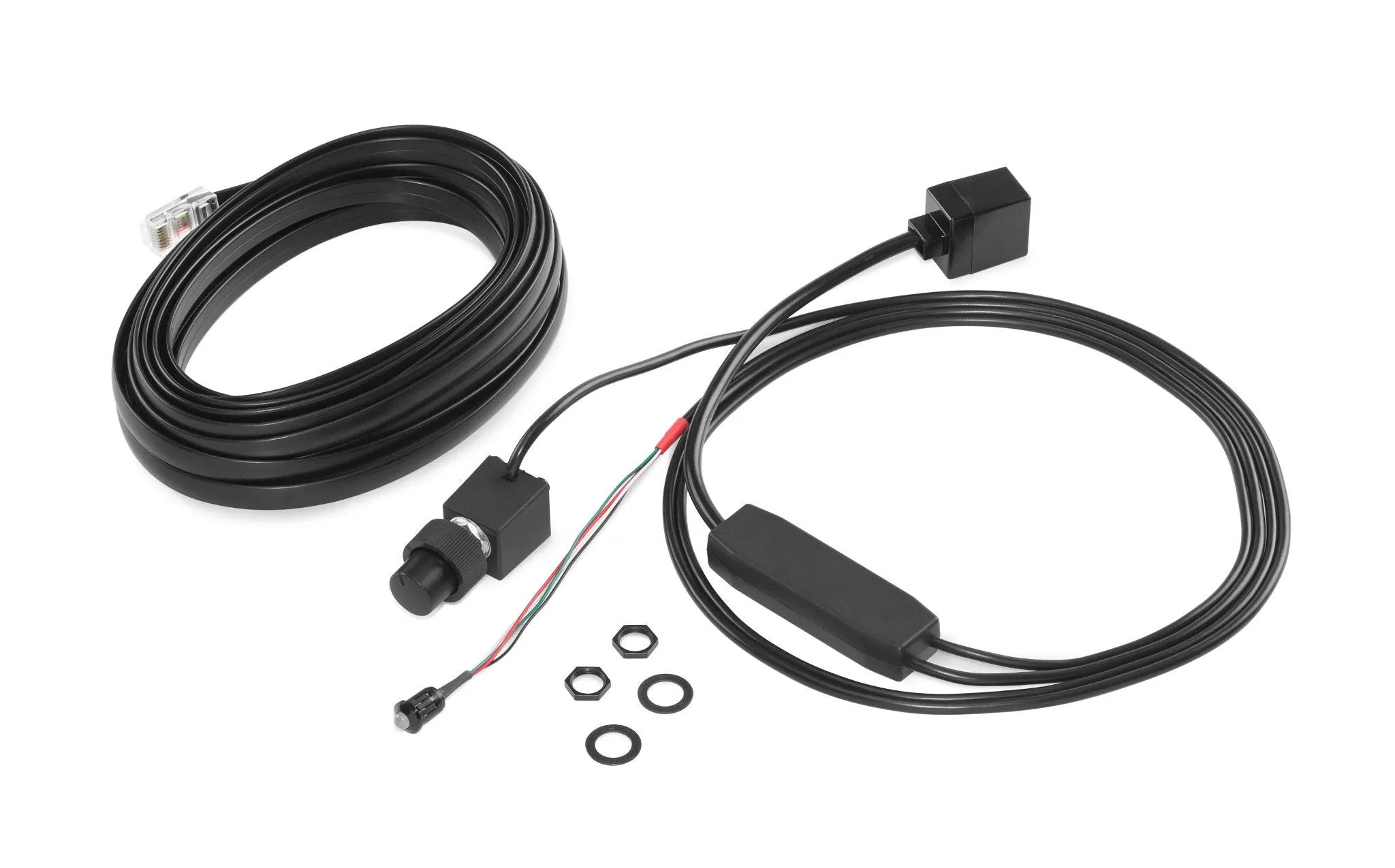

The DRC-200 is a panel-mount, wired digital remote controller designed to connect to the JLid™ port of compatible JL Audio electronics.

Functions:

• Dual-concentric rotary controls with stops
• Push-button mode selector
• Status indicator (RGB LED)

Common uses include:

• Master Volume
• Subwoofer Volume
• Preset or Mode Selection

The specific audio functionality of the DRC-200 controller will be determined by the device it is connected to.

The DRC-200 is compatible with the following JL Audio products:

FiX® OEM Integration DSP: All models
TwK® System Tuning DSP: All models
VXi-Series Amplifiers: All models

JLid™

Summary:
JLid™ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).

Detailed Information:
JLid™ offers two-way communication for a range of accessories, including the following:

    Wired System Controllers: DRC-100, DRC-200, DRC-205, M-DRC-50
    Networking Accessory: VXi-HUB, MVi-HUB
    Wireless Bluetooth® Communicator: VXi-BTC

JL Audio FiX® and TwK® processors each feature one JLid™ port, designed for connection of a wired controller.

JL Audio VXi and MVi amplifiers offer powerful networking capabilities via JLid™, to deliver single-point control of multiple amplifiers in a system. This allows the listener to adjust levels (Volume, Fader, Balance, Zone Level) and to easily select from multiple DSP presets, across an entire group of networked amplifiers. Each VXi amplifier is outfitted with separate JLid™ Control and JLid™ Comm ports. DSP equipped MVi amplifiers include a single JLid™ Comm port. Please refer to each product’s manual and our Help Center for details.

JLid™ connections are made via standard CAT-5e cables.

USA Limited Warranty:  Two (2) years from the original date of purchase
